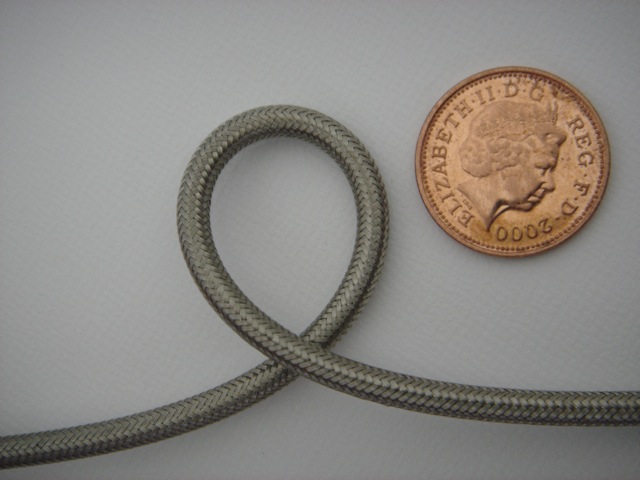

Steel-Braided Monocoil Tube

Steel-Braided Monocoil Tube - Diagramm

Steel-Braided Monocoil Tube

Steel-Braided Monocoil Tube

Also known as “Liner Braid Tube (LB)”

Features:

  • Stainless steel braid sheathing on mono-coil
  • Superior pliability
  • Non-stretch
  • Micro-diameter has very small bending radius
  • Optimum protection for optica



Materials:

  • Mono-Coil: Stainless Steel
  • Braid: Stainless Steel
  • Sheathing: Soft Polyvinyl-Chloride (PVC), Polyolefin, Polyethylene



About Standard Length:

  • Length is approx. 100m, obtained by connecting several shorter lengths (10 to 16 meters per piece)
  • Longer products (over 100m) are available by special order. (contact us for details)



Notes:

  1. Custom sizes are available.
  2. Please contact us for edge trimming of the finished product, since cutting the braided sheathing would open the assembly



Model
LB-d-d1-D-W-P
ID mm (inch) (d)
OD mm (inch) (D)
Material Thickness (mm)
(t)
Material Width (mm) (W)
Pitch (mm) (P)
Braid wire diameter (mm)
Bending Radius (mm)
Approx Weight (g/m)
Max Length one stretch (m)
stock
LB-1.7-2.0-2.4-1.2-0.2 1.7 (0.067) 2.4 (0.094) 0.15 1.2 0.2 0.07 9 8 15
LB-2.1-2.5-2.9-2-0.2 2.1 (0.083) 2.9 (0.114) 0.2 2 0.2 0.07 10 15 15
LB-2.8-3.2-3.6-2-0.3 2.8 (0.110) 3.6 (0.142) 0.2 2 0.3 0.07 12 23 15
LB-3.2-3.6-4.0-2-0.2 3.2 (0.126) 4.0 (0.157) 0.2 2 0.2 0.07 13 23 15
LB-4.0-4.6-5.0-2-0.2 4.0 (0.157) 5.0 (0.197) 0.3 2 0.2 0.07 15 28 15
※ Standard stock
○=HAGITEC standard stock item. Stock quantity will be 10 to 500m.
▲ = contact us
